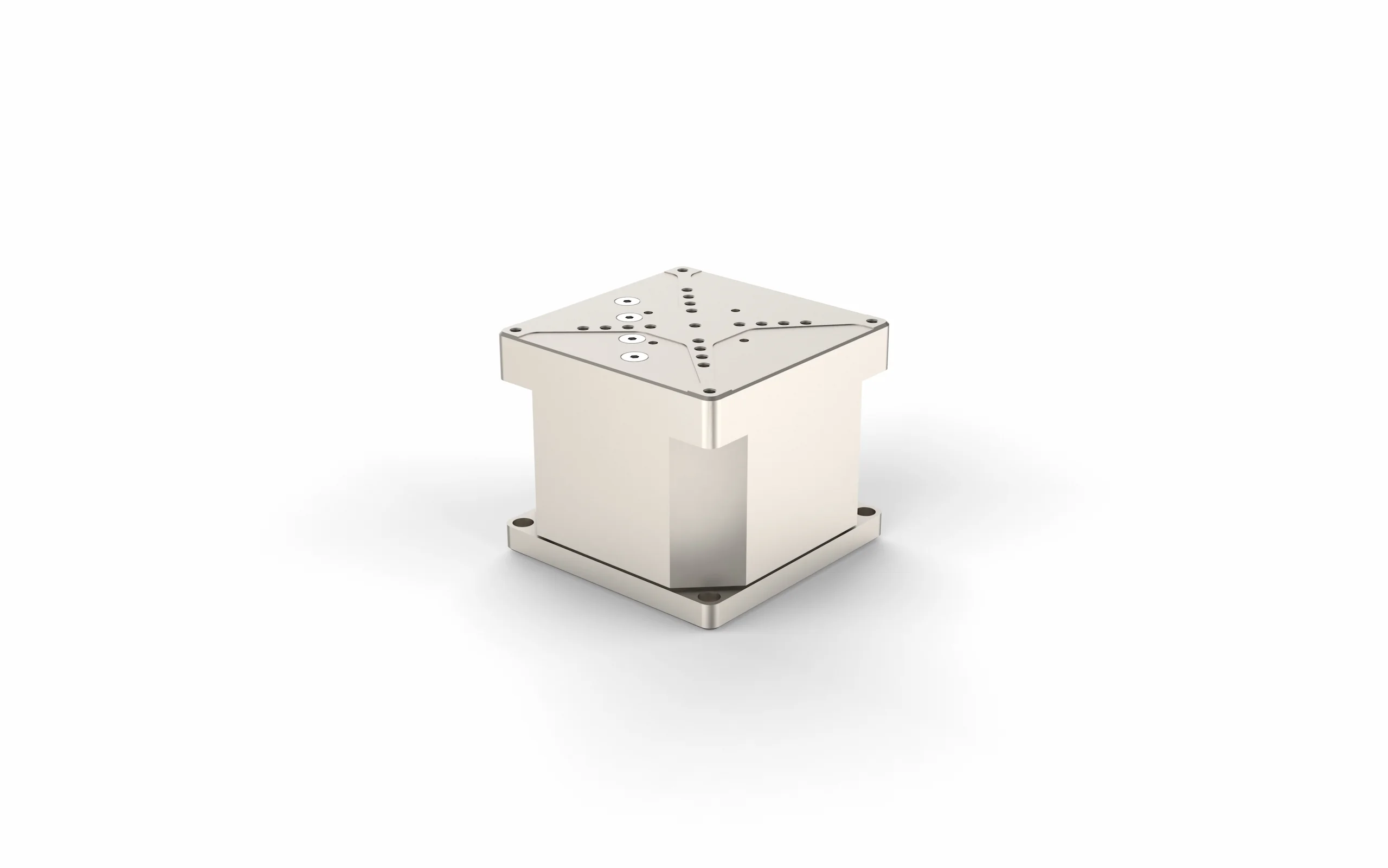

GO Elevation HV
The PRECIBEO GO Elevation Stage in the 45-series is also available in a High Vacuum version.

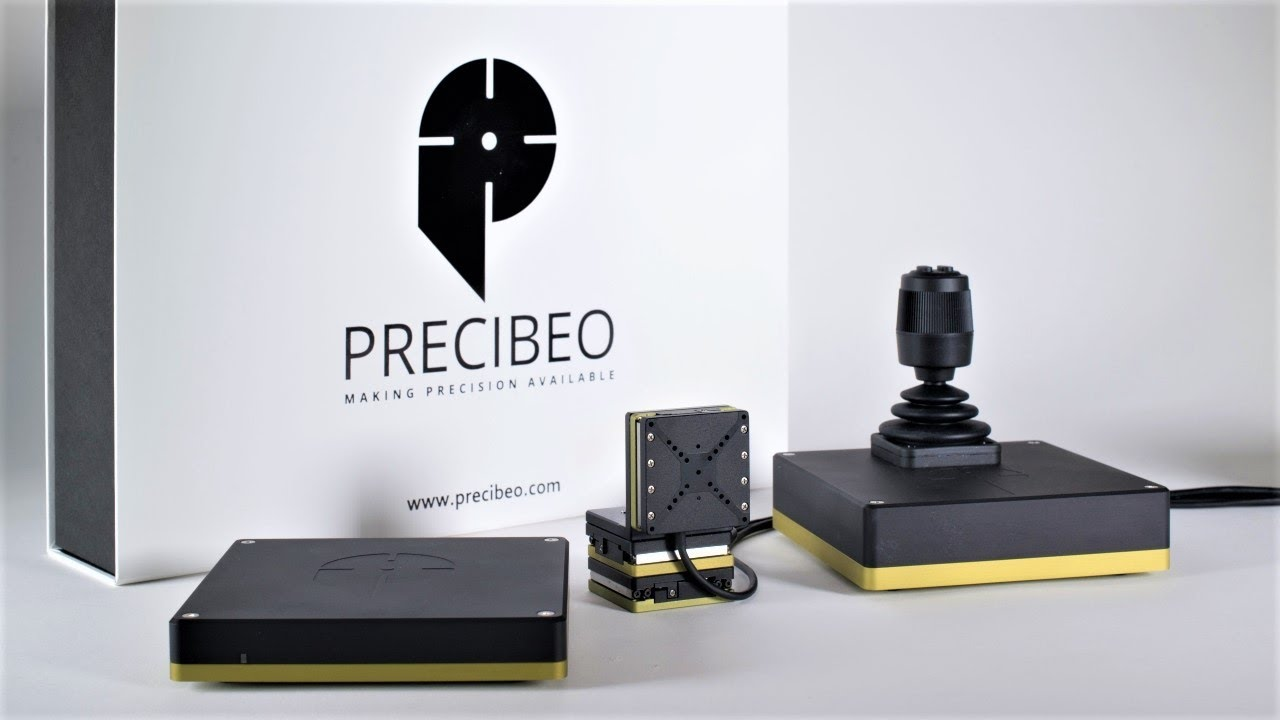

GO Elevation
The elevation stage in the 45-series features a flat top and offers a footprint of 45×45 mm, a travel range of 10 mm vertically and is available with 5 N or 10 N operating lift force.
All products in the modular PRECIBEO GO system are compatible and are easily combined into multi-axis systems offering smooth continuous motion, fast step and settling times, and self-locking at rest.
| Positioning | GO-ELE-5N | GO-ELE-10N |
|---|---|---|
| Travel (Z) | +10 mm | |
| Position Sensor | Optical Encoder | |
| Sensor Resolution | 2 nm | |
| Minimum Incremental Motion | 2 nm | |
| Bidirectional Repeatability | ± 100nm (typ. @ full travel) | |
| Straightness & Flatness | ± 2 µm (typ.) | |
| Pitch | ± 150 µrad (typ.) | |
| Yaw | ± 150 µrad (typ.) | |
| Motion | GO-ELE-5N | GO-ELE-10N |
| Maximum Operating Force (Push/Pull) | 5 N (min.) | 10 N (min.) |
| Holding Force (When Power Is Off) | 6 N (min.) | 11 N (min.) |
| Maximum Speed (At No Load) | 8 mm/s | |
| Maximum Speed (At Maximum Operating Force) | 5 mm/s (min.) | 1 mm/s (min.) |
| Drive Type | GO-ELE-5N | GO-ELE-10N |
| Motor Type | Piezo Drive | |
| Mechanical | GO-ELE-5N | GO-ELE-10N |
| Maximum Load | 0,5 kg | 1 kg |
| Guide Type | Crossed Roller | |
| Size | 45x45x38 mm | |
| Weight (without cable & connector) | 160 g (±10%) | |
| Miscellaneous | GO-ELE-5N | GO-ELE-10N |
| Cable | 2 m cable (±5%) with ix Industrial™ connector | |
| Material | Anodized Aluminum | |
Related Products

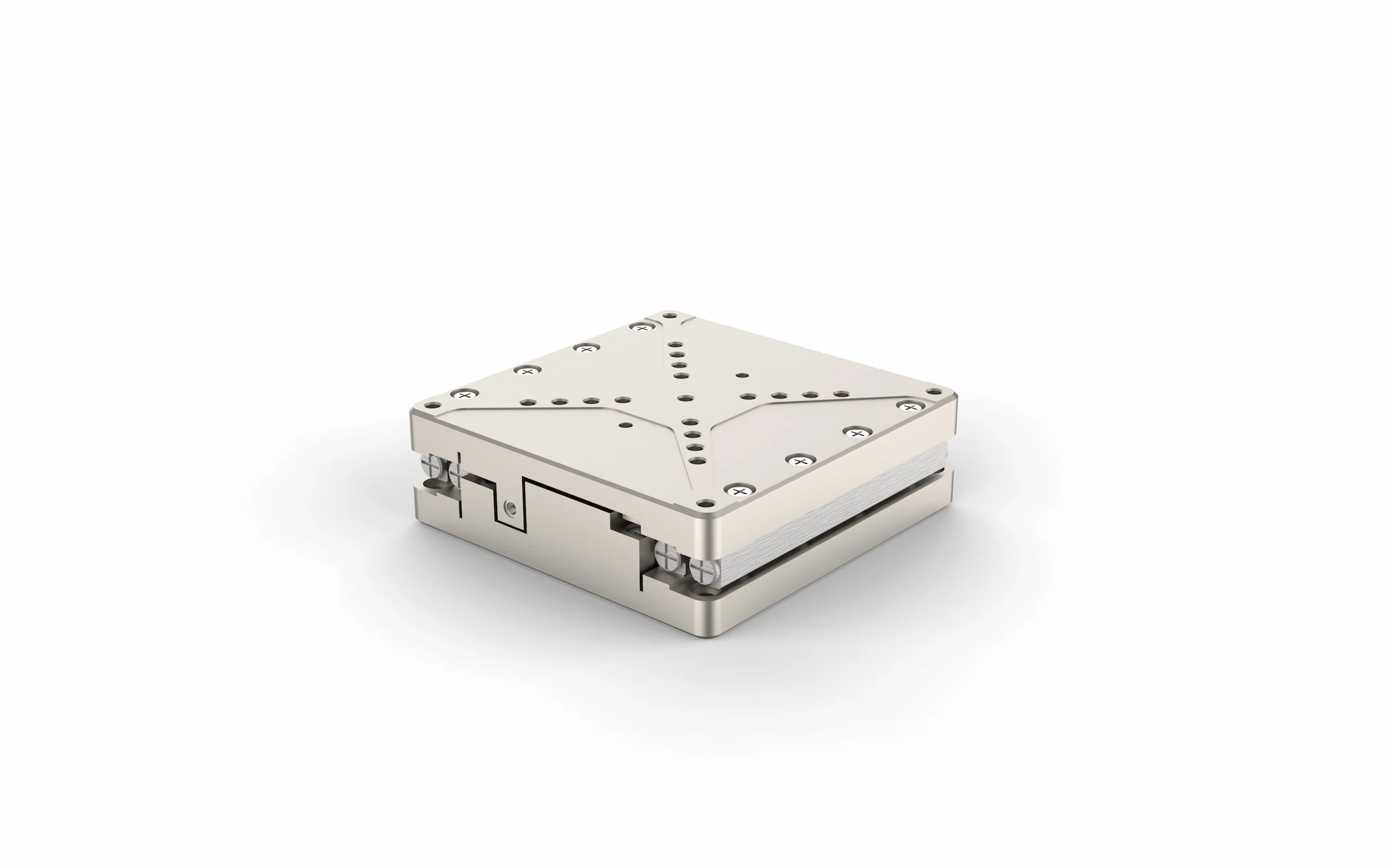

GO Linear Stage 4545 HV
