ROTATION STAGES

GO Rotation Stages

Precise, Powerful and Easy to use

The PRECIBEO GO Rotation Stages move with micro degree precision over unlimited travel ranges, providing stability through high torque and are self-locking at rest.



The PRECIBEO GO Rotation Stages come with an integrated position sensor and are designed for delivering the precision, load capacity and ease of use needed for fast and simple set up.

GO Rotation Stage RS4545.jpg

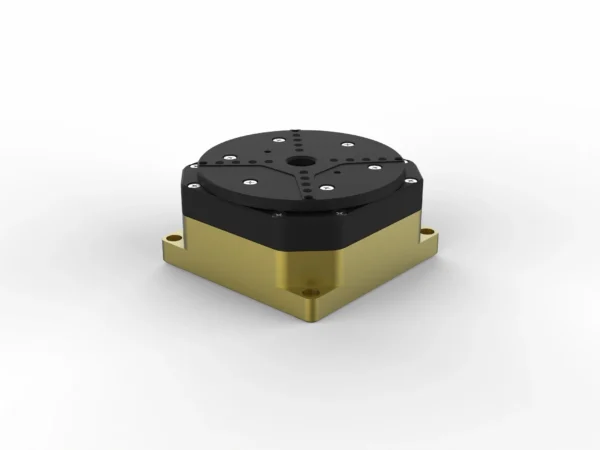

GO RS4545

The PRECIBEO GO Rotation Stage 4545 in the 45-series offers a footprint of 45x45 mm with an aperture of 6 mm, a limitless travel range and is available with 90 mNm operating torque.

Linear Stages
GO Rotation Stage RS4545 HV_edited_edite

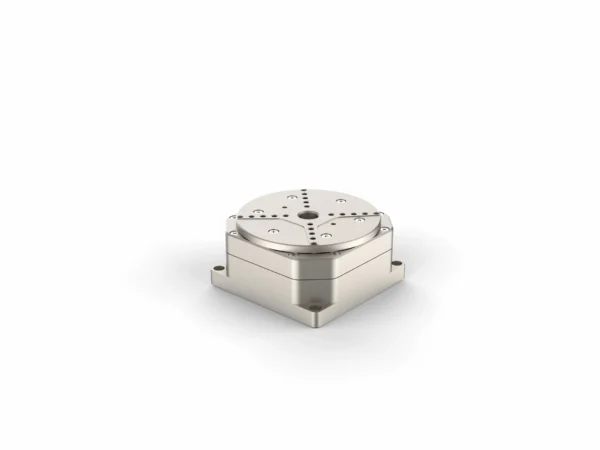

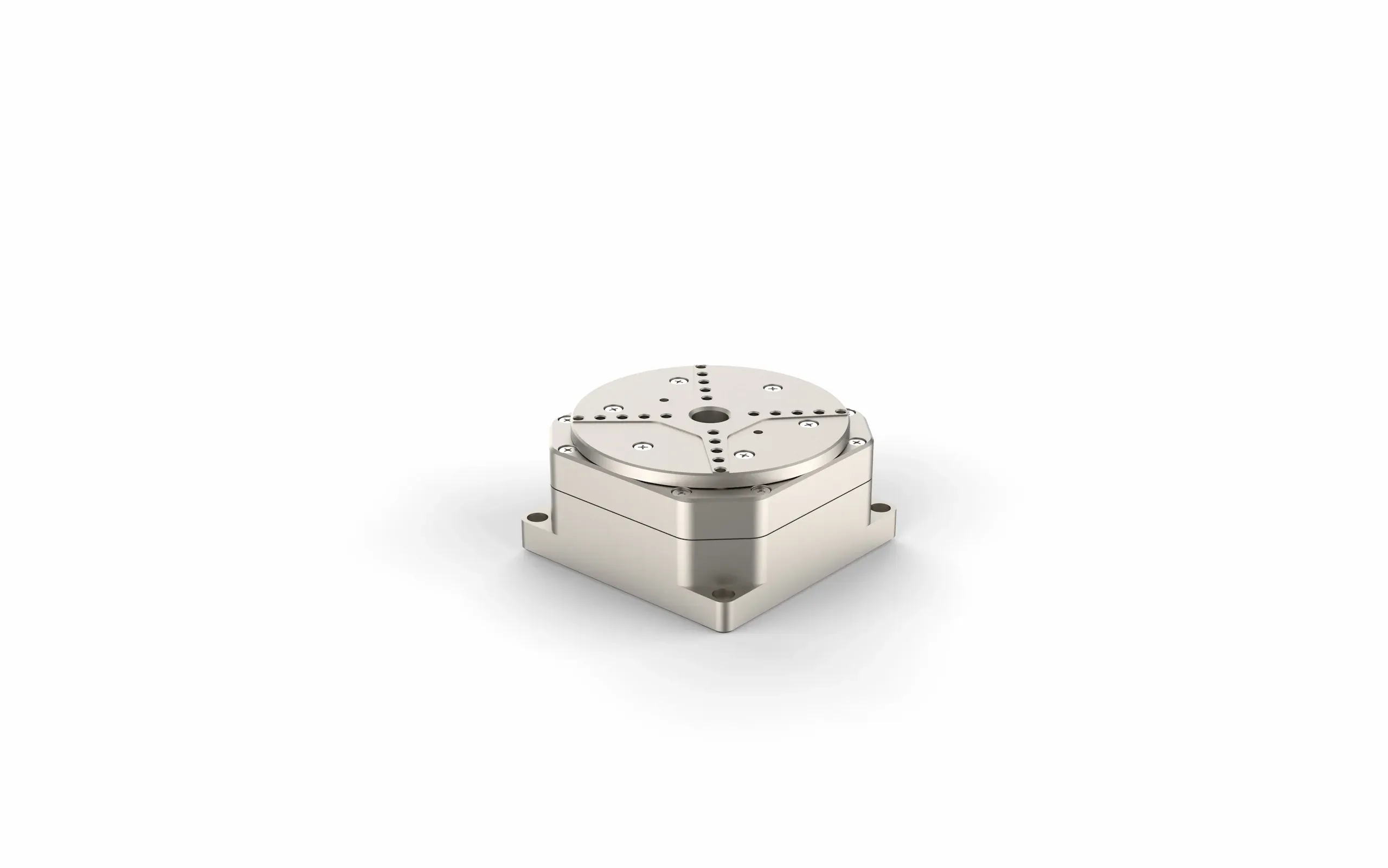

GO RS4545 HV

The PRECIBEO GO Rotation Stage 4545 in the 45-series is also available in a High Vacuum version. ​

​

​

Linear Stages

Rotation Stages for Multistage Assemblies

Choose one, two, three or more rotation or linear stages and seamlessly create your multi axis system. Plug the stage cable connectors into the PRECIBEO GO Controller and you are ready to GO!


Θ(Z)X - RS4545 & LS4545

One GO Rotation Stage 4545 with an adapter plate and a Linear Stage 4545 on top enables limitless rotation around Z with microdegree precision and 20 mm travel nanometer precision motion radially.

​


XYΘ(Z) - LS4545 & RS4545

Two PRECIBEO GO Linear Stage LS4545 and one GO Rotation Stage RS4545 enables nanometer precision motion along the X and Y axes, and unlimited microdegree precision motion around the Z axis.


XYZΘ(Z) - LS4545, Elevation & RS4545

Two PRECIBEO GO Linear Stage LS4545, one GO Elevation Stage and one GO Rotation Stage RS4545 enables nanometer precision motion along the X, Y and Z axes, and unlimited microdegree precision motion around the Z axis.
