LINEAR STAGES

Linear Stages

GO Linear Stages

Precise, Powerful and Easy to use

The PRECIBEO GO Linear Stages move with nanometer precision over centimeter distances, lift up to 1 kg and are self-locking at rest. The PRECIBEO GO Linear Stages come with an integrated position sensor and are designed for delivering the precision, load capacity and ease of use needed for fast and simple set up.

GO Linear Stage LS4545.jpg

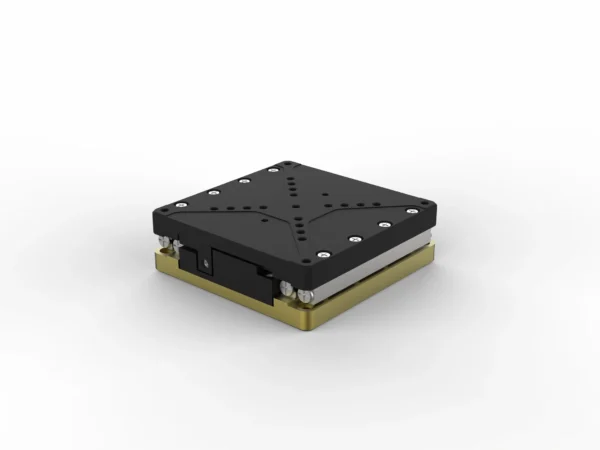

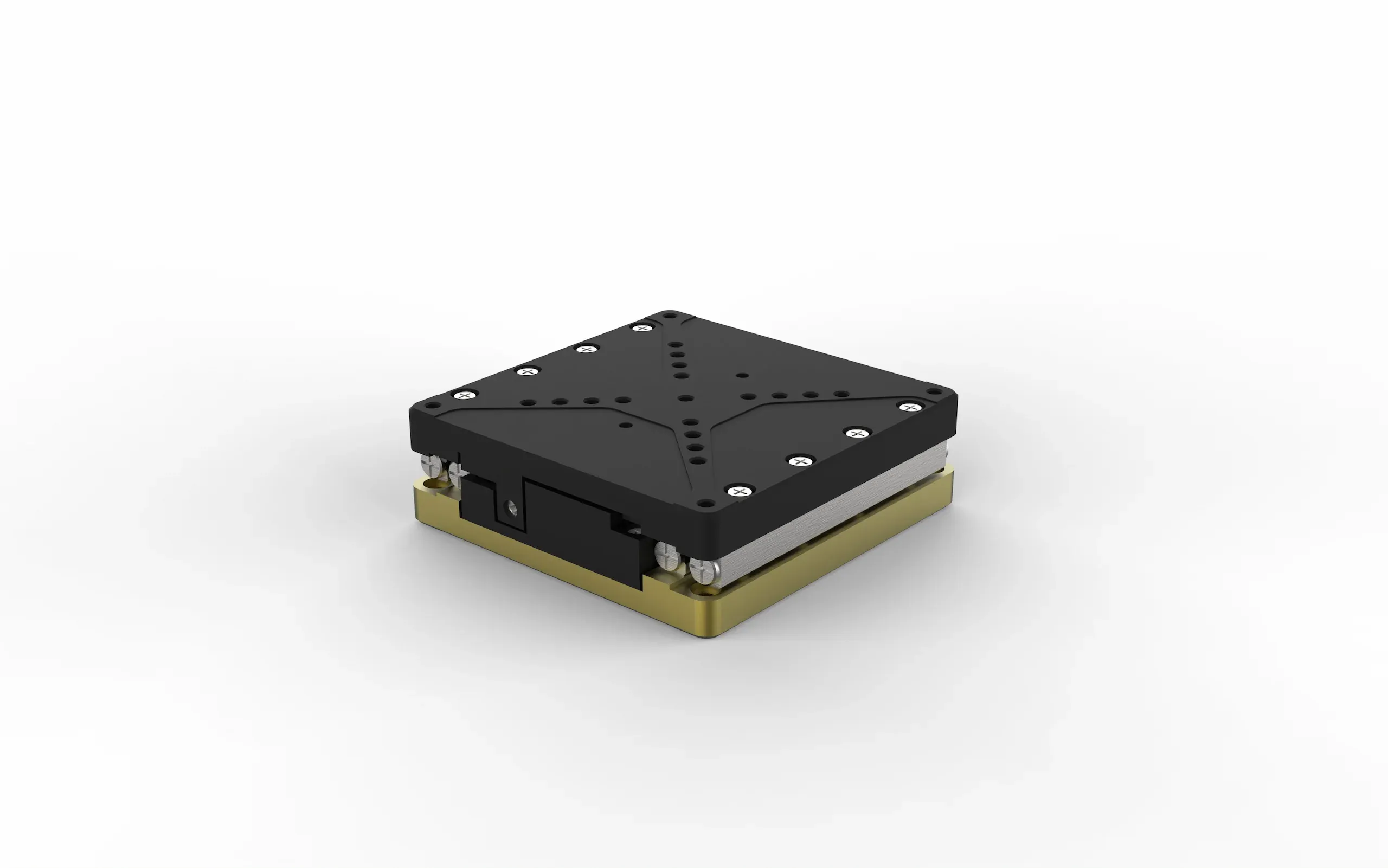

GO LS4545

The smallest stage in the 45-series, PRECIBEO GO LS4545 offers a footprint of 45x45 mm, a travel range of 20 mm and is available with 5 N or 10 N operating lift force.

Linear Stages
GO Linear Stage LS4545 HV.jpg

GO LS4545 HV

The smallest stage in the 45-series, PRECIBEO GO LS4545 is also available in a High Vacuum version.

Linear Stages
GO Linear Stage LS6545.jpg

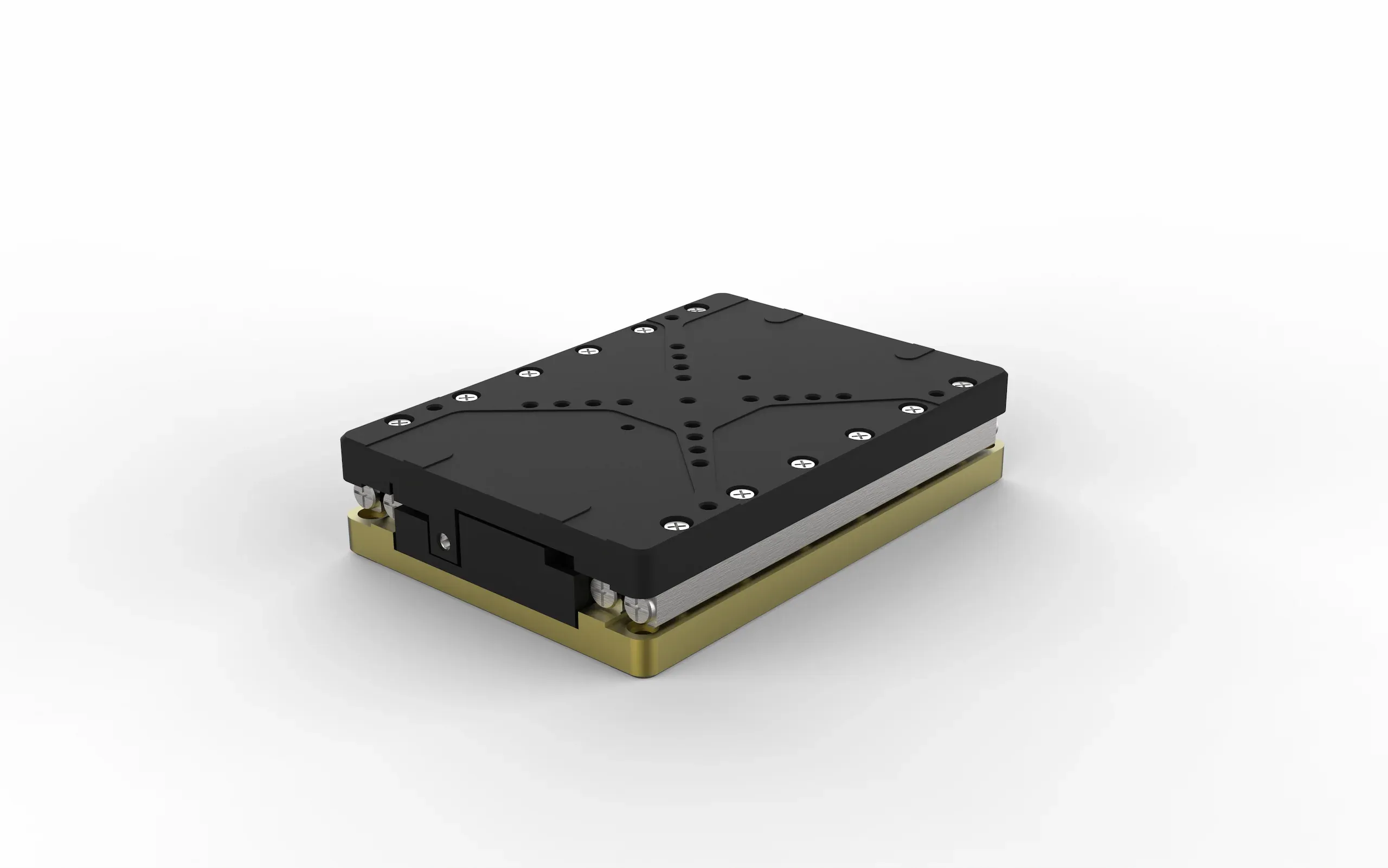

GO LS6545

The mid stage in the 45-series, PRECIBEO GO LS6545 offers a footprint of 65x45 mm, a travel range of 35 mm and is available with 5 N or 10 N operating lift force.

Linear Stages
GO Linear Stage LS6545 HV.jpg

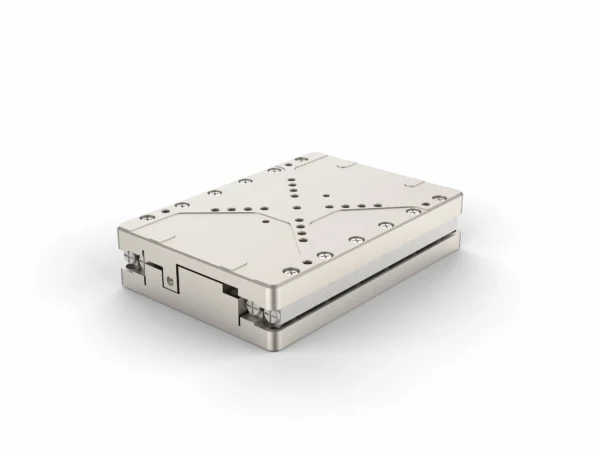

GO LS6545 HV

The mid stage in the 45-series, PRECIBEO GO LS6545 is also available in a High Vacuum version.

Linear Stages
GO Linear Stage LS8545.jpg

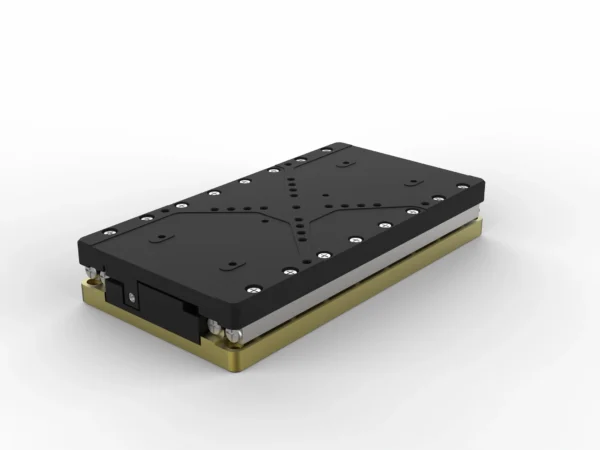

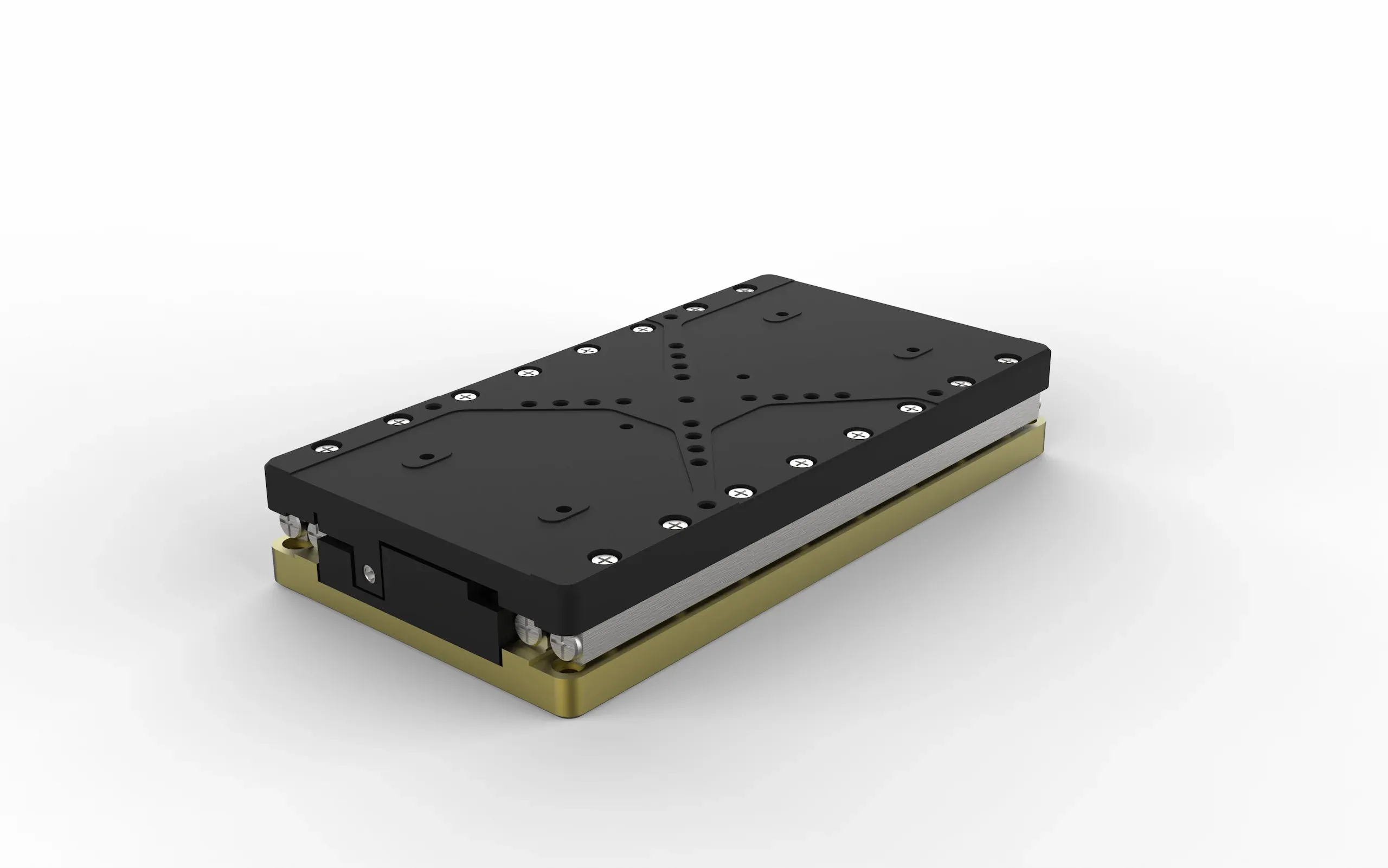

GO LS8545

The largest stage in the 45-series, PRECIBEO GO LS8545 offers a footprint of 85x45 mm, a travel range of 50 mm and is available with 5 N or 10 N operating lift force.

Linear Stages
GO Linear Stage 8545 HV.jpg

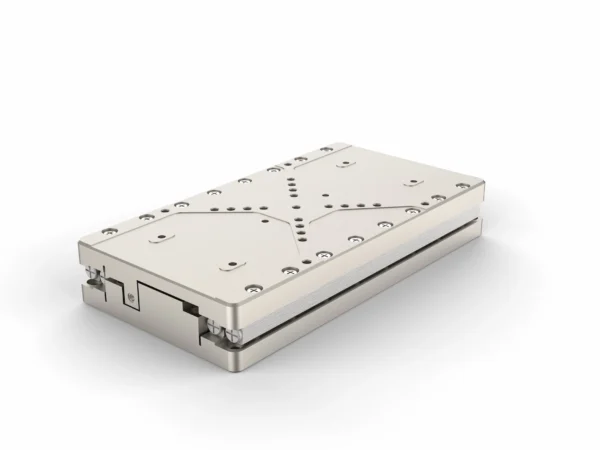

GO LS8545 HV

The largest stage in the 45-series, PRECIBEO GO LS8545 is also available in a High Vacuum version.

Linear Stages
GO Elevation Stage.jpg

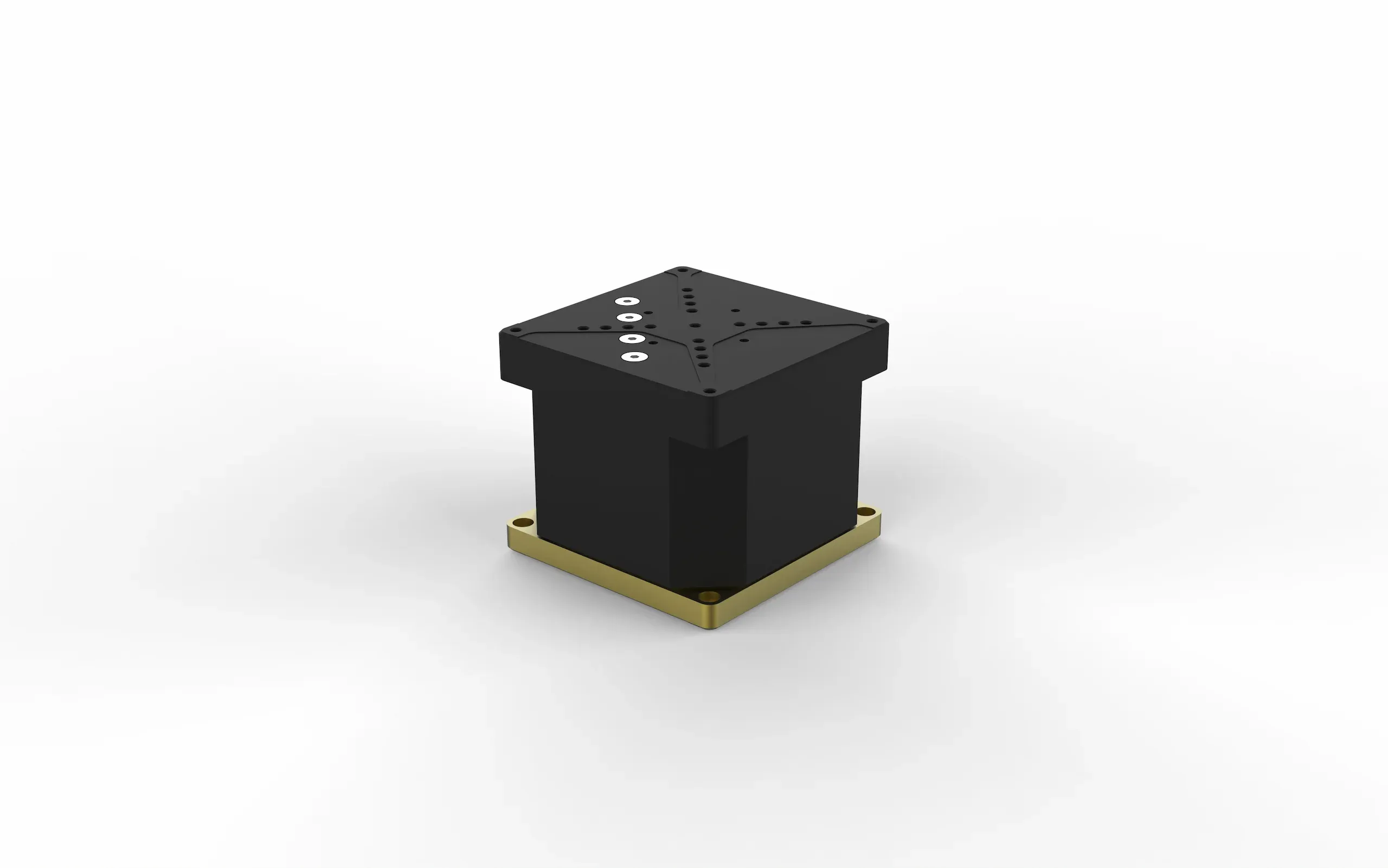

GO Elevation

The PRECIBEO GO Elevation Stage in the 45-series features a flat top and offers a footprint of 45x45 mm, a travel range of 10 mm vertically and is available with 5 N or 10 N operating lift force.

Linear Stages
GO Elevation Stage HV.jpg

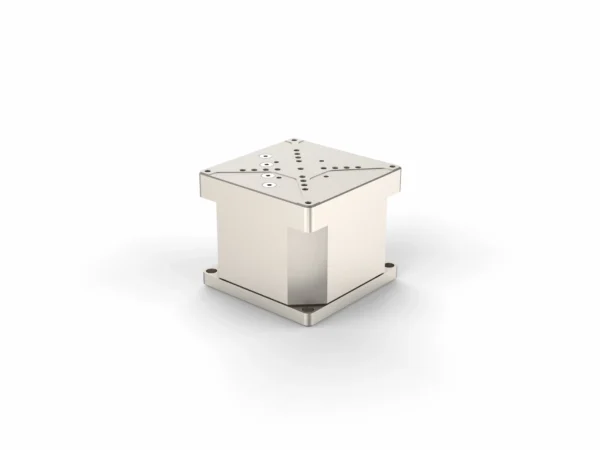

GO Elevation HV

The PRECIBEO GO Elevation Stage in the 45-series is also available in a High Vacuum version.

Linear Stages

Linear Stages in Multistage Assemblies

Choose one, two, three or more linear stages or rotation stages and seamlessly create your multi axis system. Plug the stage cable connectors into the PRECIBEO GO Controller and you are ready to GO!


XYZ - LS4545

Three PRECIBEO GO Linear Stages LS4545 assembled into a XYZ Stage enable nanometer precision motion along the X, Y and Z axis, each with 20 mm travel range.

​


​XYΘ(Z) - LS4545 & RS4545

Two PRECIBEO GO Linear Stage LS4545 and one GO Rotation Stage RS4545 enables nanometer precision motion along the X and Y axes, and unlimited microdegree precision motion around the Z axis.


XYZΘ(Z) - LS4545, Elevation & RS4545

Two PRECIBEO GO Linear Stage LS4545, one GO Elevation Stage and one GO Rotation Stage RS4545 enables nanometer precision motion along the X, Y and Z axes, and unlimited microdegree precision motion around the Z axis.
